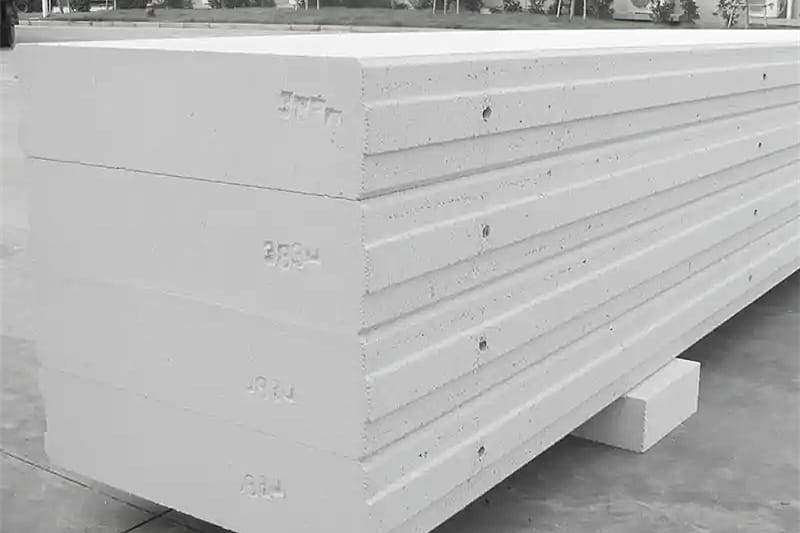

CCP Panels: Ceramsite Concrete-foamed Precast Panel, is a brand new precast material that is:
In short, CCP Panel is an ALL-IN-ONE solution: Single material satisfies all needs of a building envelop, differ from any existing building envelop solution (which applies multi-layer/multi-material treatment)
Can serve as Can serve as exterior panel, interior panel, floor/roof panel, load bearing wall, partition wall, fence, parapet wall etc.
Start Your Project

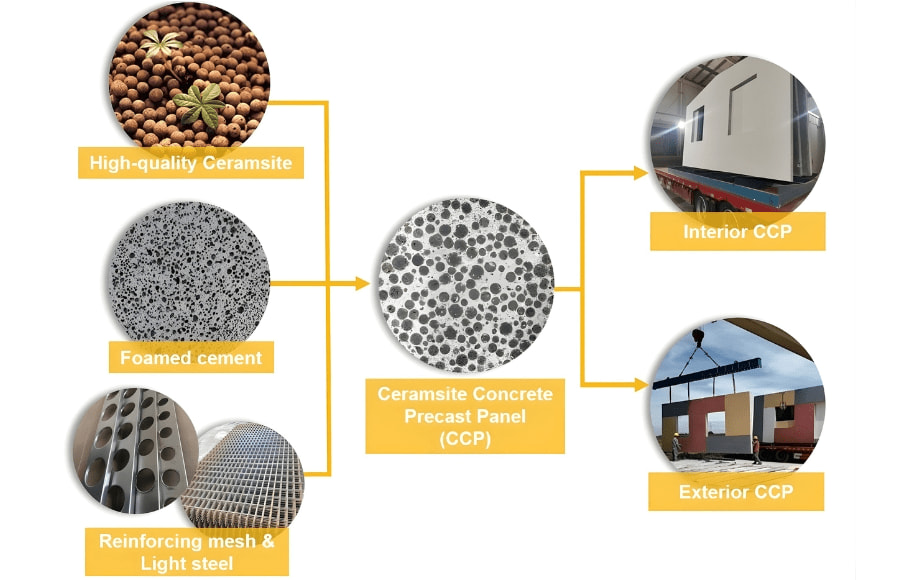

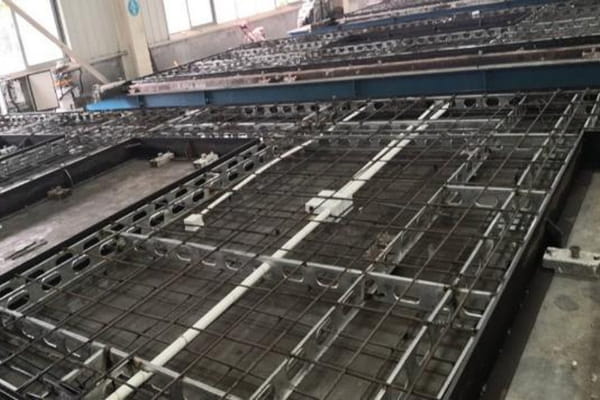

CCP panels integrate lightweight ceramsite aggregate, foamed cement technology, and internal steel reinforcement to form a structural, load-bearing precast wall, floor, and roof system.
 (1)_1767667011_WNo_900d580.jpg)
CCP panels are designed for multiple structural and architectural applications across prefabricated building systems.
Exterior Wall, Interior Wall, Floor/Roof, Load-bearing Panel, Partition Panel, Parapet Panel.

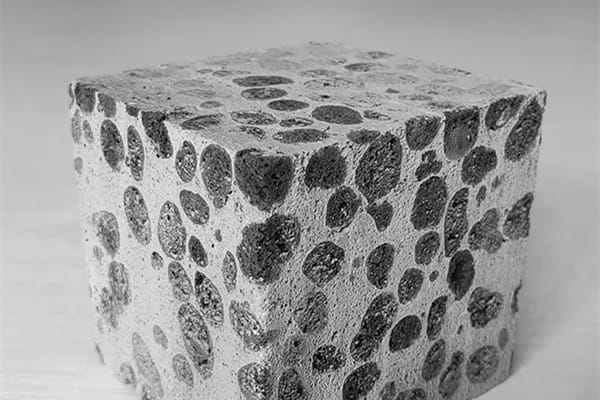

Ceramsite is a lightweight, porous, kiln-fired clay aggregate that significantly reduces self-weight while improving thermal and sound insulation performance.
The foamed cement is engineered into a closed-cell honeycomb structure, providing high compressive strength with excellent thermal efficiency.

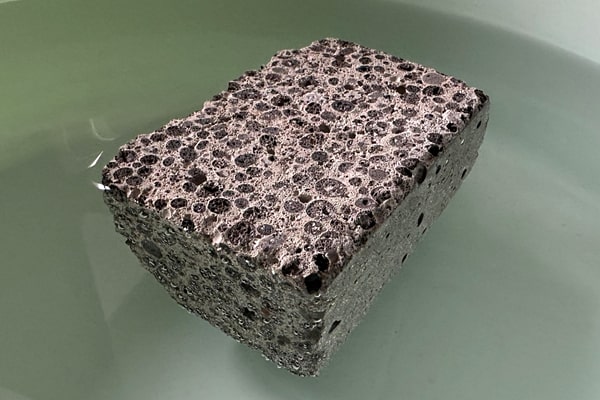

Specific gravity 750kg/m³, floating
Transportation: Worldwide shipping at a low cost

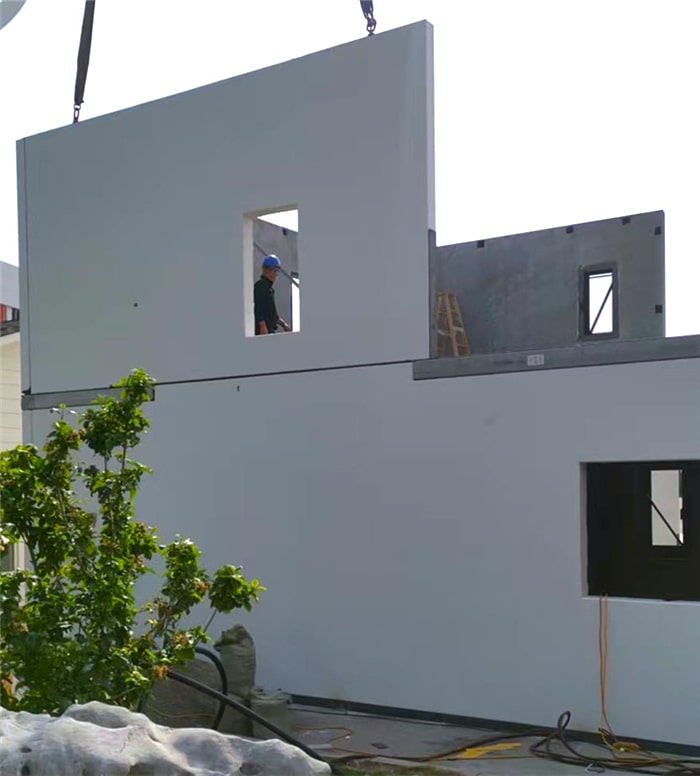

Installation: lower labor & hoisting cost, more efficient erection

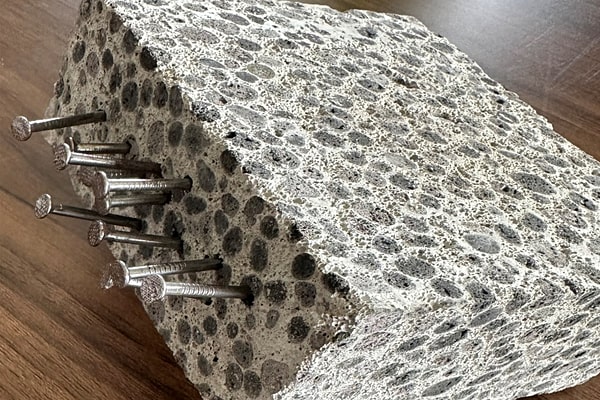

Nail-holding strength exceeds 1000 N with no cracking.
Perform better than some of the wood
Very convenient for internal/external decoration and hanging

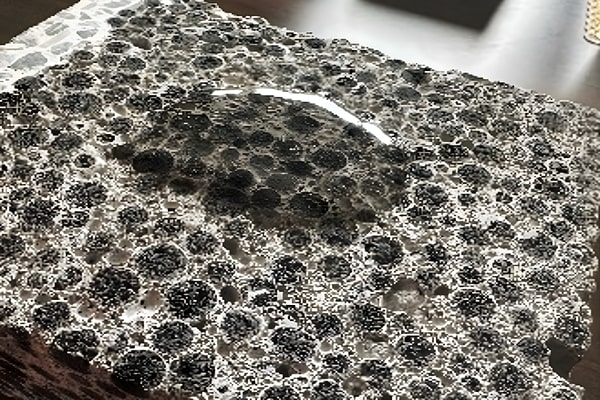

Water absorption rate < 0.17%
Moisture-proof and anti-mildew avoiding rotten wall problem
Scenarios: underground structures, kitchen/bathroom, roof panels, humid areas
Unflameble
100mm thickness has more than 4 hours fire-resistance
Scenarios: firewalls, fireproof-rooms

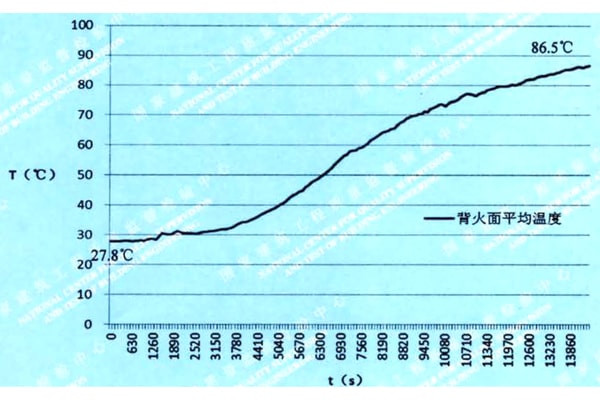

Surface temperature only 86.5 ℃ during 1100℃ 4-hour-fire-testing

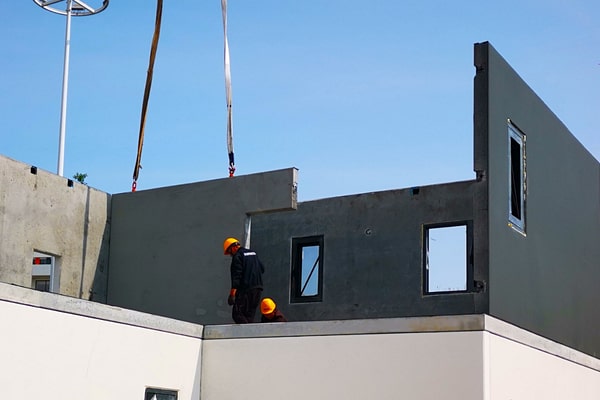

Excellent heat insulation performance
R-value 10 times better than concrete

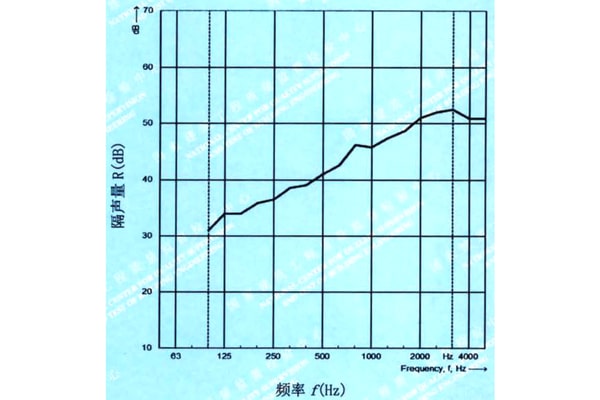

Typical 120mm thickness has more than 52dB sound insulation
Scenarios: hotels, sound barriers, partition walls between units

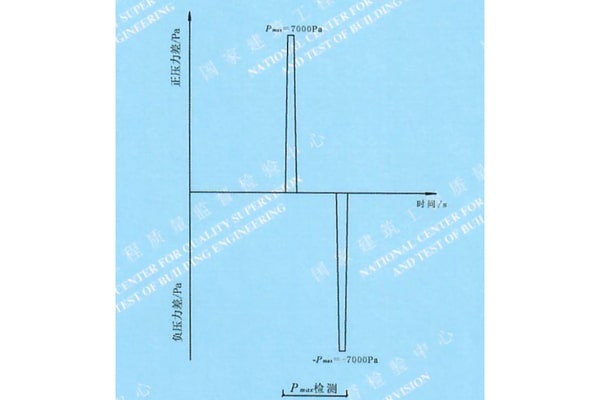

Wind pressure resistance ±7000 Pa

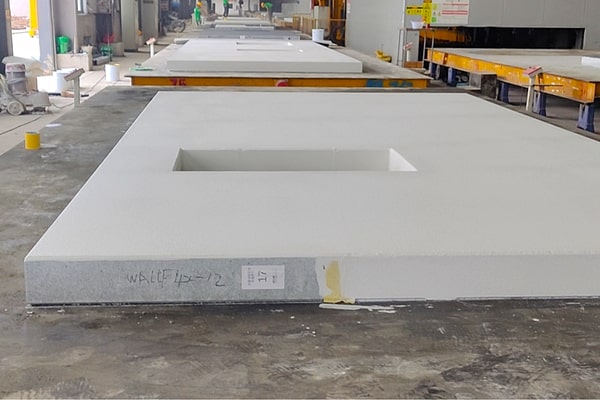

Bending-resistance 25.5 kN
Scenarios: exterior walls for super high-rises, sound barriers for high-speed railways, typhoon/seismic areas, negative pressure cabins
Loading strength: ＞2.5KN/m²
Scenarios: Load-bearing walls, floor/roof panels for low-rises

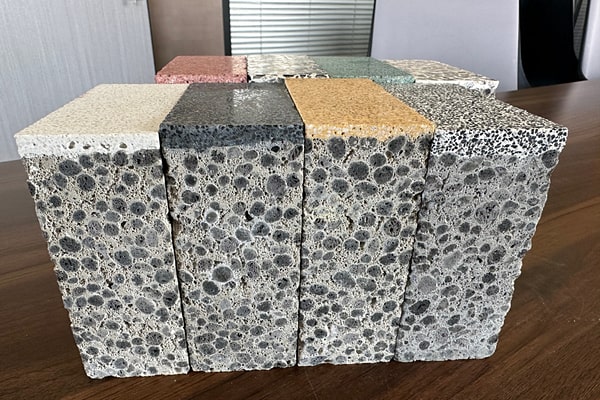

Exterior surface precasted (prefab.) in factory
Strength of the extterior surface reached 10mohs hardness
Self-cleaning
Anti-aging, fully inorganic materials
